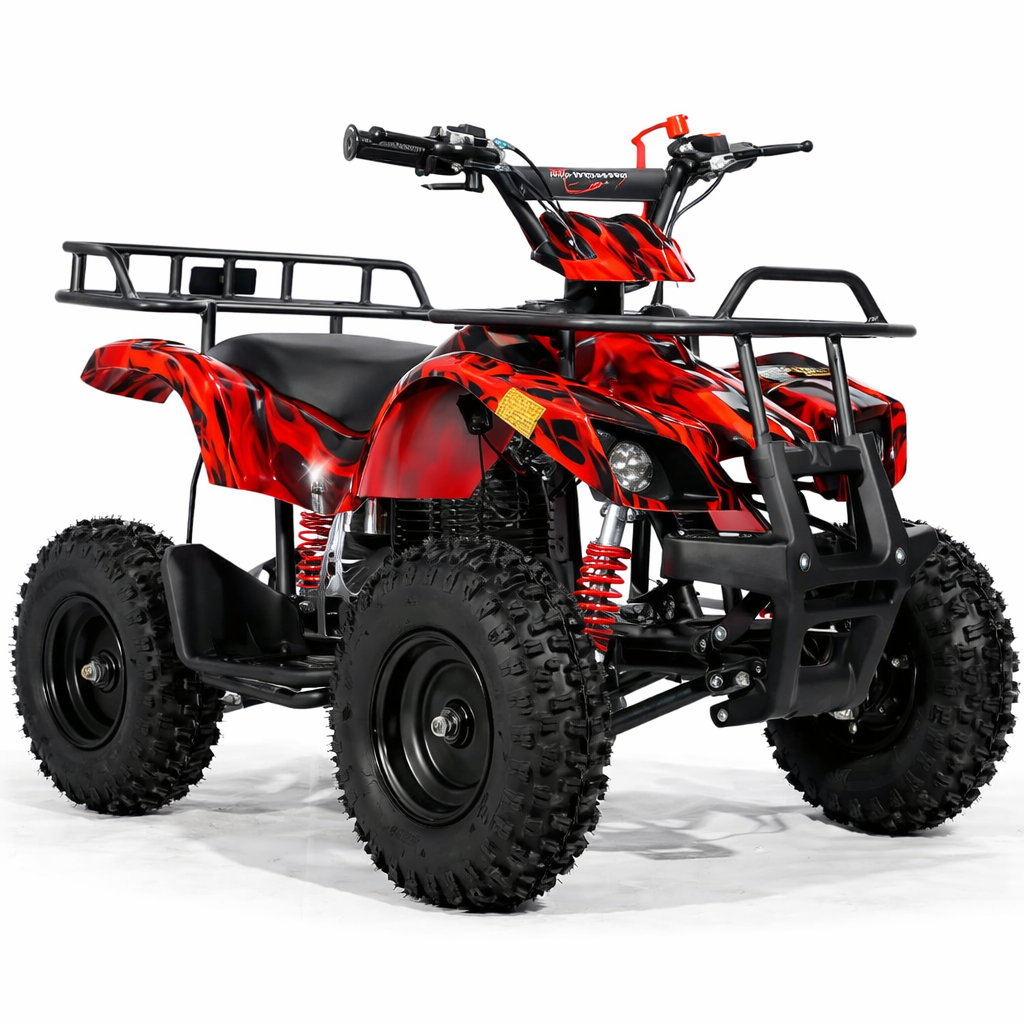

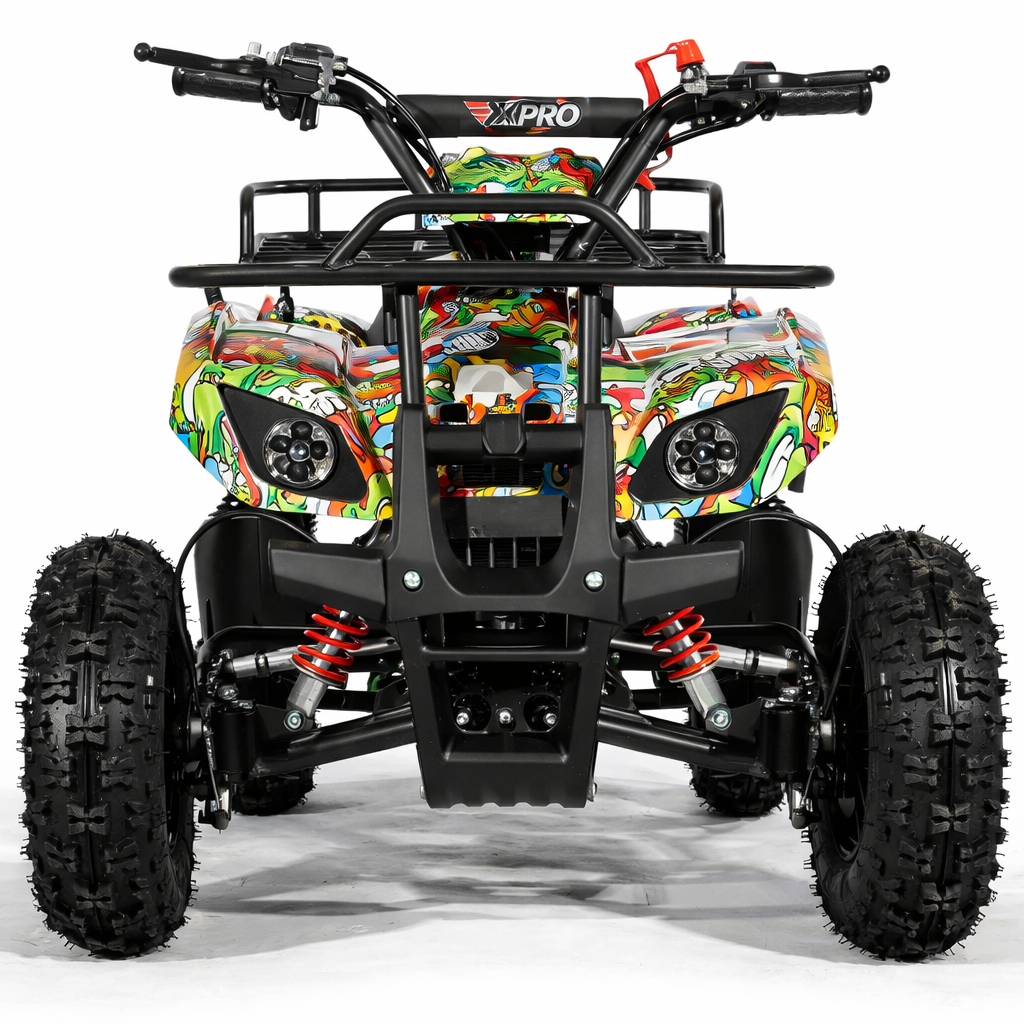

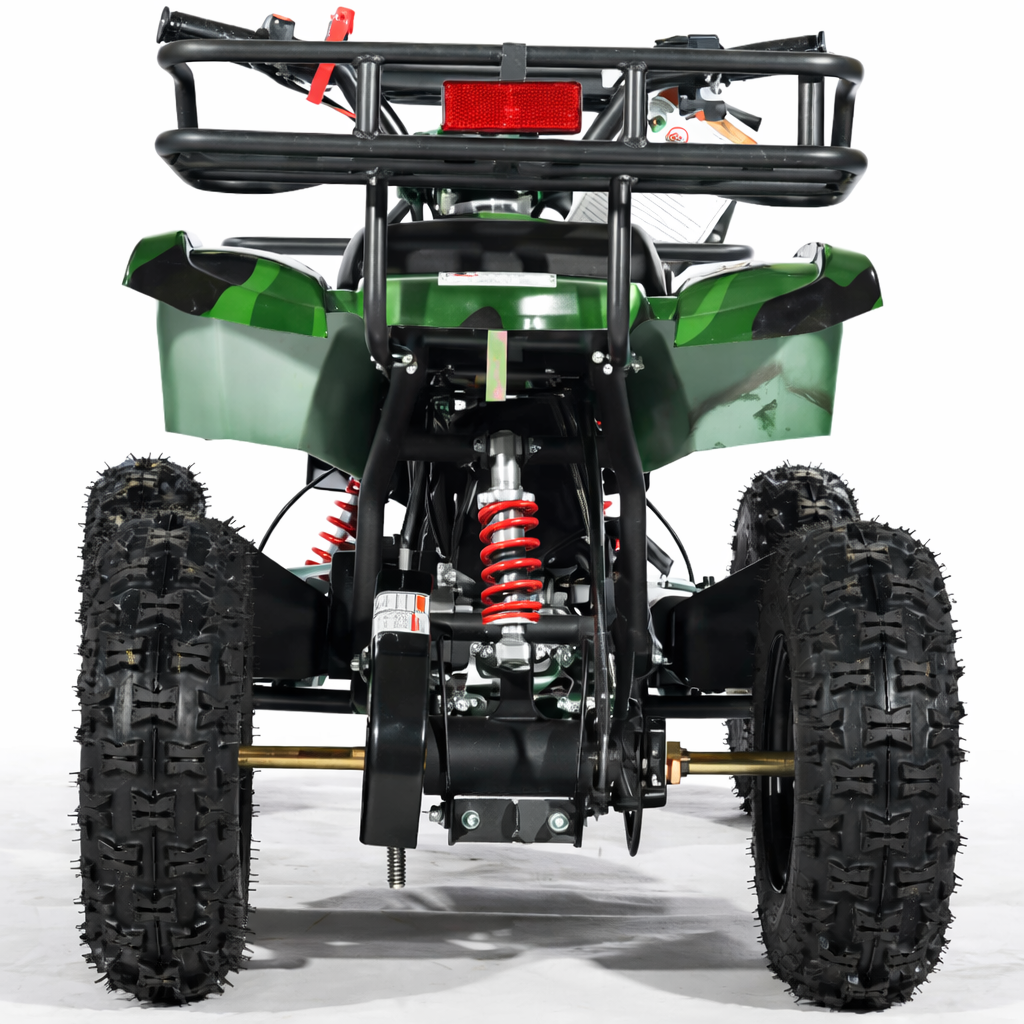

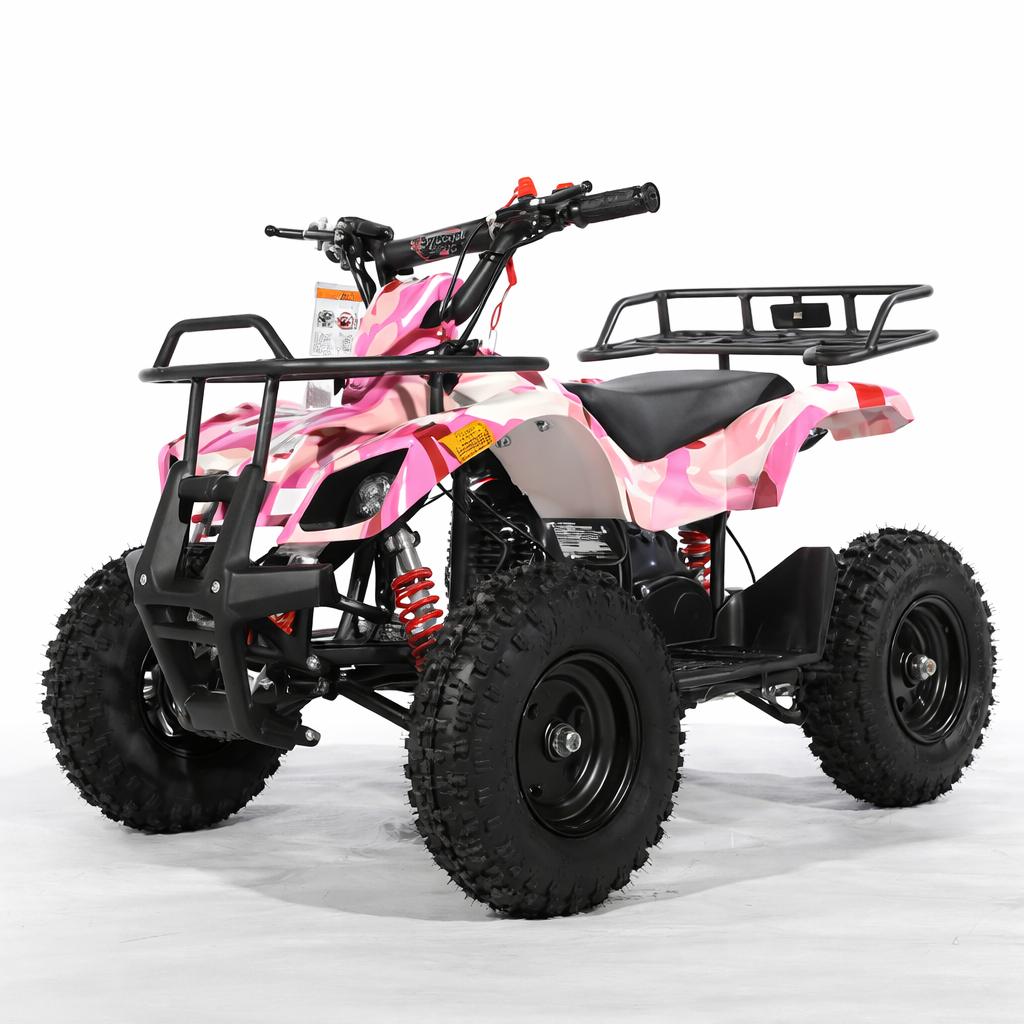

Give young riders the thrill of adventure with the AT 40cc ATV, a compact and powerful quad designed for beginners and kids. Built with durability, safety, and performance in mind, this ATV features a reliable 40cc engine, smooth chain transmission, and strong disc brakes for confident control on various terrains.
| Model Number | ATV-Z04 |
| Engine/Drive Train | |
|---|---|
| Engine | 40cc, 4 stroke |
| Cylinder Arrangement | Single |
| Max Speed | 10-15mile/h (Depending on Riders Weight and Road Conditions) |
| Cooling System | Air Cooled |
| Power Output | 0.9kw at 6500rpm |
| Torque | 1.6Nm at 5000rpm |
| Transmission | Chain |
| Start System | Pull Start |
| Front Brakes | Disc |
| Rear Brakes | Disc |
| Front Tires | 4.10-6 |
| Rear Tires | 4.10-6 |
| Capacities / Dimensions | |
| Max.Load(lbs) | 70 |
| Net Weight (lbs) | 79 |
| Gross Weight (lbs) | 93 |
| Overall Length | 42" |
| Overall Width | 26.8" |
| Overall Height | 28.7" |
| Packing Size | 40*22*19" |
| Seat Height | 22.46" |
| Fuel Capacity (L) | 1.8 |
